Reverse Engineering Gaming Steering Wheels

USB HID protocol reverse engineering and a custom Android force feedback driver

Overview

Gaming steering wheels (Logitech, Thrustmaster) talk to the PC over proprietary, undocumented USB protocols — force feedback only works through the manufacturer’s closed drivers. I reverse-engineered the protocol with Wireshark and custom Python tooling, then reimplemented it as a native Android driver: full USB HID handling plus force feedback effects.

The deployment target was standalone VR: the driver made Meta Quest the first standalone headset with native gaming wheel support and removed the €1,000+ PC per training station.

Technical Stack

Android USB Host API, Java Native Interface (JNI), Unity Native Plugins, Python (protocol analysis), Wireshark, USB HID Protocol, Unity Input System

The Challenge

Force feedback wheels had zero support on Android-based systems. On PC the manufacturer’s driver handles everything; on Android there was no infrastructure at all — not even basic input recognition. And since the protocols are proprietary, there was no documentation to write a driver against. The only way in was recovering the protocol from live USB traffic.

Recovering the Protocol

Two months of packet captures and analysis:

  • Captured and analyzed 100+ protocol commands across the wheel’s operational modes, using Wireshark and custom Python scripts for packet parsing and pattern detection
  • Built automated filtering to separate relevant commands from noise
  • Mapped a multi-layer protocol: initialization sequences, mode switching, bidirectional data flow
  • Wrote a standalone Android debugging utility to test protocol hypotheses quickly in a similar OS environment

Driver Implementation

  • Built complete Java-based driver emulation as Android Native Plugin for Unity
  • Implemented full USB HID protocol handling through Android USB Host API
  • Implemented force feedback effects: spring, damper, friction, constant force
  • Designed Unity-facing API exposing the wheel as a standard Joystick in the Unity Input System, so any Unity project can use it without special handling

Architecture

Business Impact

Industry First: The only standalone VR application with native USB force feedback wheel support. Every competing VR training solution still requires a PCVR setup.

Business Value

  • Eliminated €1,000+ PC hardware requirement per training station

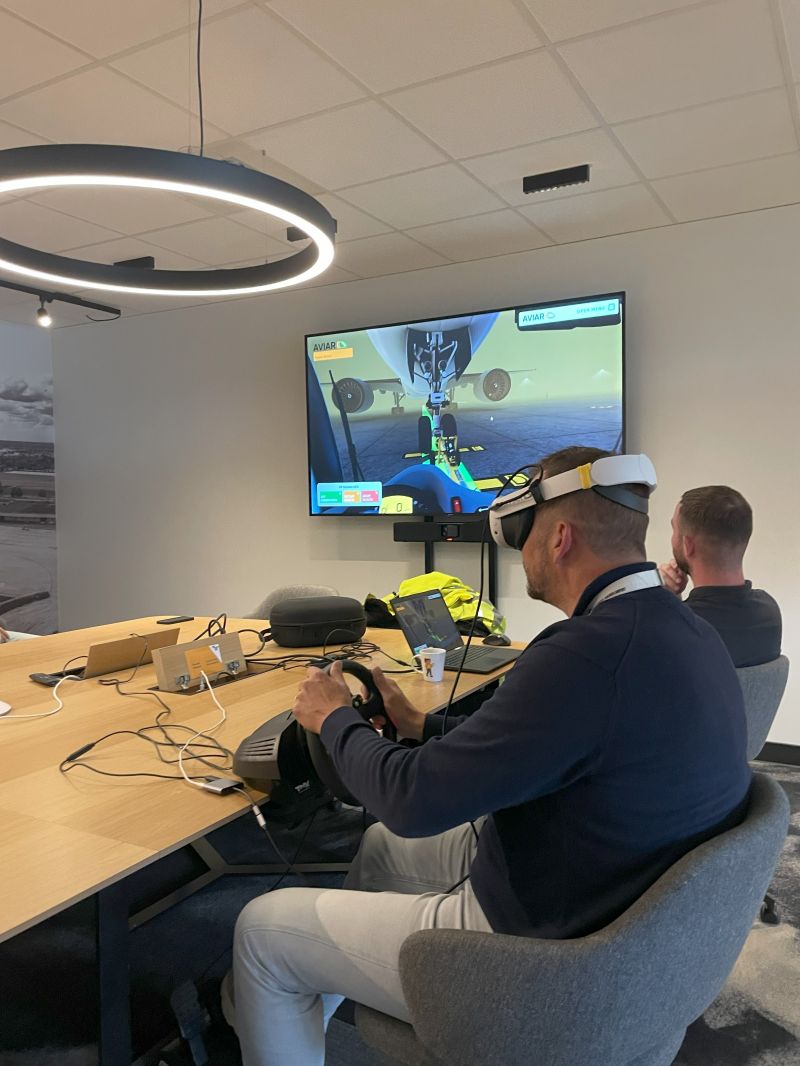

  • Enabled fully portable demo setups for trade shows and client presentations
  • Real force feedback during vehicle operations instead of a passive wheel
  • Modular architecture: supporting a new wheel model mostly means adapting its protocol, not rewriting the driver

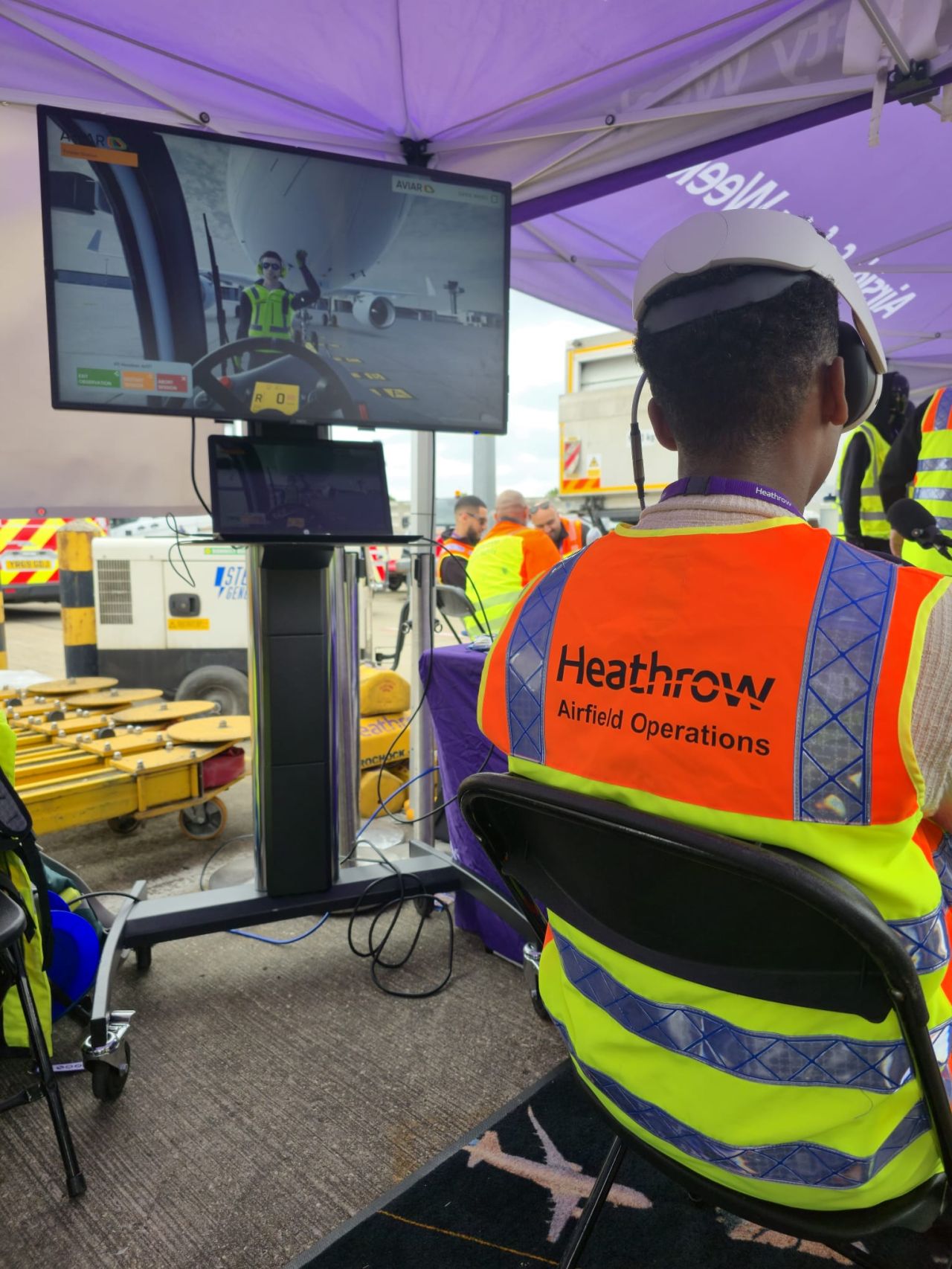

Reception: At aviation trade shows, the part that got attention was the missing PC — mobile training deployments no longer needed one.
